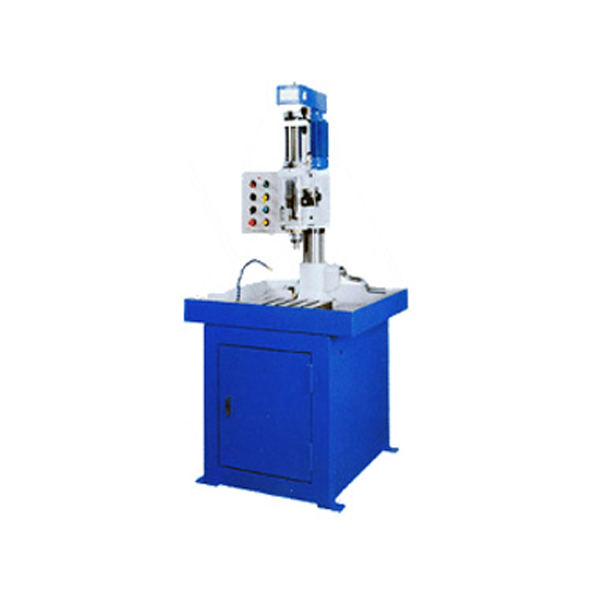

Automatic Hydraulic Feed Drilling Machines

Features under this category

Hydraulic Drilling Machines – For mild steel or medium hard materials.
Machines suitable for standard drilling, Chamfering, Reaming, Hole Milling, Countersinking etc.
Rigid Construction, Fabricated base Stress relieved and duly scrapped to achieve desired accuracies as per IS standards.
Spindle is firmly arrested in two P4 Class, preloaded bearings, to sustain max axial thrust & radial loads.
Drilling cycle (Rapid forward – feed-dwell-rapid return)
Machines available in horizontal as well as vertical axis.
Spindle drive through timer belts and inter changeable pulley sets.
Hydraulic spindle feed, infinitely variable within the range.
Inbuilt clamp / decamp cycle
Machines can be equipped with Multi-Spindle Heads for mass production.

Hydraulic Automatic Drilling Machines
Model	H-7130	H-6150	H-5100	H-570
Max. Drilling Capacity (S45C)	Ø 20mm	Ø 16mm	Ø 10mm	Ø 10mm
Spindle Taper	MT2	MT2	JT6	JT6
Spindle Travel	130mm	150mm	100mm	70mm
Spindle Speed (Optional)	300-1000rpm	500-2000rpm	500-3000rpm	500-3000rpm
Throat (Column to spindle centre)	230mm	230mm	180mm	180mm
Column Diameter	Ø 102mm	Ø 102mm	Ø 80mm	Ø 80mm
Motor HP	2HP	1.5HP	1HP	1HP
Distance from Spindle to table	100-700mm	100-700mm	100-400mm	100-400mm
Hydraulic Pressure	25kg/cm2	20kg/cm2	12kg/cm2	12kg/cm2
Over All Height	2100mm	1800mm	1600mm	1600mm

Hydraulic Automatic Drilling Machines
Model	H-12150	H-9150	H-8130	H-7150
Max. Drilling Capacity (S45C)	Ø 50mm	Ø 35mm	Ø 35mm	Ø 25mm
Spindle Taper	MT4/NT50	MT4/NT40	MT4/NT40	MT3
Spindle Travel	150mm	150mm	130mm	150mm
Spindle Speed (Optional)	50-1000rpm	300-1000rpm	300-1000rpm	300-1500rpm
Throat (Column to spindle centre)	300mm	260mm	260mm	230mm
Column Diameter	Box Type (500×500)	Box Type (300×300)	Box Type (300×300)	Ø 102mm
Motor HP	5HP	3HP	3HP	2HP
Distance from Spindle to table	100-700mm	100-700mm	100-700mm	100-700mm
Hydraulic Pressure	25kg/cm2	25kg/cm2	25kg/cm2	25kg/cm2
Over All Height	2500mm	2500mm	2500mm	2100mm

Description

Hydraulic Systems duly interfaced with the mother machine.
Comprehensive electrical control panels with PLC OR contactor control.
All motor of reputed brand, Heavy duty, F Class Insulation, duly assembled on the machine with all drive arrangement.
Operation and maintenance manual.
Machine lamp arrangement.
Job counter & tool change counters.
