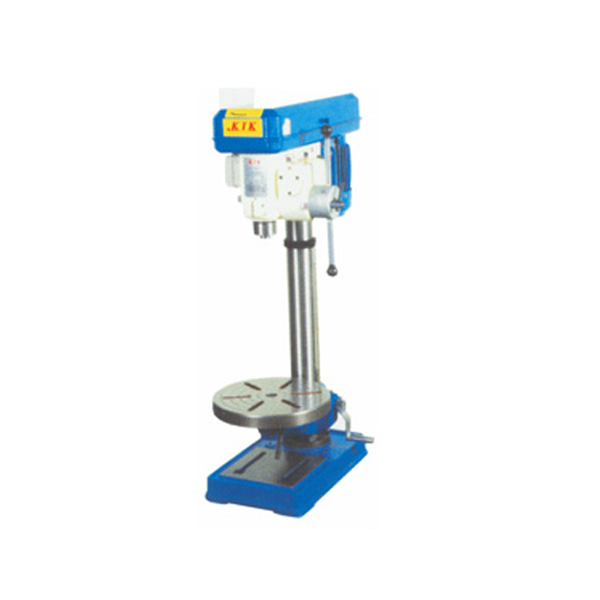

Gear Transmission Auto Feed Drilling Machine
1st Generation – Sutaible for production of 15000 to 30000 components per month.
Features under this category
- Mechanical Auto feed Drilling Machines.
- The Automatic Feed drilling operation is driven by hollow clutch gear mechanism.
- Oil deep gear drive arrangement for long lasting life of gears.
- Single Point graduated collar depth control system is provided for maximum operator
convenience.
- Automatic feed drilling performance with Auto disengagement of feed after reaching depth
& return back to the home position.
- Inbuilt feed drive safety clutch arrangement to prevent accidental damage.
- Set able Multi feeds provided on the Machines by change of belts.
- Machines also available in Fabricated Stand Models.
- Machines can be equipped with Multi spindle Heads for Mass Production.
Gear Transmission Autofeed Drilling Machines
|
| Model |
LG – 250 |
LG – 120 |
| Maximum Drilling Capacity (S45C) |
Ø 25mm |
Ø 16mm |
| Spindle Taper |
MT3 |
MT2 |
| Spindle Travel |
140mm |
80mm |
| Number Of Speeds |
6 |
4 |
| Spindle Speed |
250-2020 rpm |
470-1730 rpm |
| Throat (Column to Spindle Centre) |
230mm |
180mm |
| Column Diameter |
Ø 102mm |
Ø 80mm |
| Table Diameter |
420mm |
320mm |
| Base Size |
380 * 600mm |
300 * 500mm |
| Max Distance From Spindle To Table |
630mm |
400mm |
| Distance From Spindle To Base |
930mm |
600mm |
| Motor HP |
2HP |
1HP |
| Overall Height |
1600mm |
1050mm |
| Weight |
220kg |
100kg |
