NC SERVO INDEXING TABLES

Features under this category

  • Modular construction for S.P. M. manufacturer
  • Modules are of wide range and has unique feature of interchangeability.
  • Modules are simple in assembly and suitable for wide range of various applications.
  • In both orientation i.e. horizontal OR vertical, the Modules can be mounted easily.
  • The raw material used for modules while manufacturing are of precise quality grade. Because of that, the modules have long life and consistence performance during operations.
  • Modules are tested under strict norms.
  • The complete dimensional drawings in 2D presentation are available.

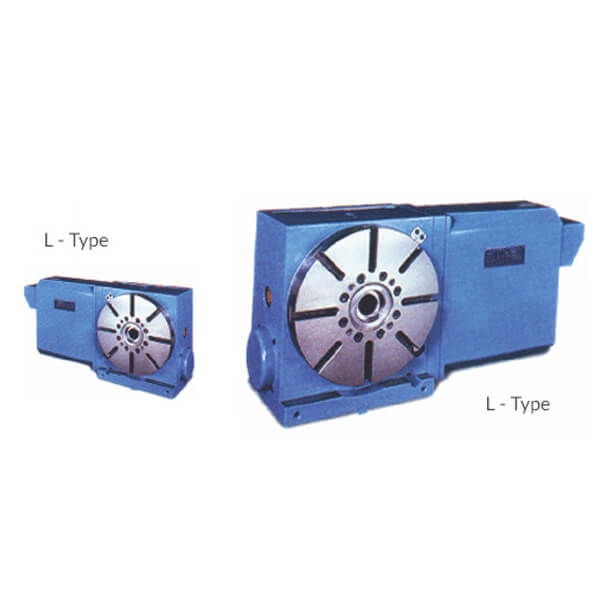

CNC Rotary Tables
Model NCT-125 NCT-170 NCT-200 NCT-250 NCT-320
Table Diameter (mm) Ø125 Ø170 Ø200 Ø250 Ø320
Table Center Hole Diameter (mm) Ø40 H7 Ø50 H7 Ø60 H7 Ø50 H7 Ø60 H7
Table Center Through Hole Diameter  (mm) Ø25 Ø30 Ø40 Ø32 Ø46
Horizontal Position Height (mm) 150 190 195 200 230
Center Height of Vertical Position (mm) 110 135 135 170 210
Table T-Slot Width  (mm) 235 275 273 300 375
Standard guide block Width (mm) 12 H7 12 H7 12 H7 12 H7 14 H7
Hydraulic Pressure (kg/cm2) 35 35 35 35 35
Minimum input increment (degree) 0.001o 0.001o 0.001o 0.001o 0.001o
Total Speed
(Motor 2000rpm)		 Rotation Speed (r.p.m.) 22.2 22.2 22.2 16.6 16.6
Gear Ration 1/90 1/90 1/90 1/20 1/20
Servo Motor
(Operational)		 FANUC α 2 α 4 α 4 α 8 α 12
MITSUBHISHI HF-44T HF-53T HA-53T HF-103T HF-203S
SIEMENS 1FK7042 1FK7060 1FK7060 1FK7063 1FK7063
Rotation torque (kgf-m) 12 16 23 48 78
Indexing accuracy (accumulative) (sec) 60” 20” 20” 15” 15”
Repetitive accuracy (sec) ± 2” ± 2” ± 2” ± 2” ± 2”
Clamping
Torque		 F (kgf-m) 600 800 1000 1400 1700
FxL (kgf-m) 15 17 24 50 85
FxL (kgf-m) 20 40 65 85 110
Load
Capacity		 0 (degree) (kg) 100 150 200 250 350
90 (degree) (kg) 50 70 85 100 150
Weight Net (kg) 38 60 75 110 220
Categories: ,

Description

KTK Machines INDIA offers unique and wide range of S.P.M. modules to S.P.M. manufacturer.
Using KTK make modules gives great comfort for machine builders because of its simple construction specifically for assemblies. This enables machine builder to construct the machine with high speed. The machine can focus his concentration towards other assemblies as such fixtures and component proving.
