Standard Hydraulic Feed Drilling
1st Generation – Sutaible for production of 30000 to 50000 components per month.
Features under this category
- Hydraulically Operated Economical Machines.
- Low cost automation.
- Rigid construction.
- Drilling cycle (Rapid forward – feed – dwell – Rapid return).
- Spindle drive through stepped pulley.

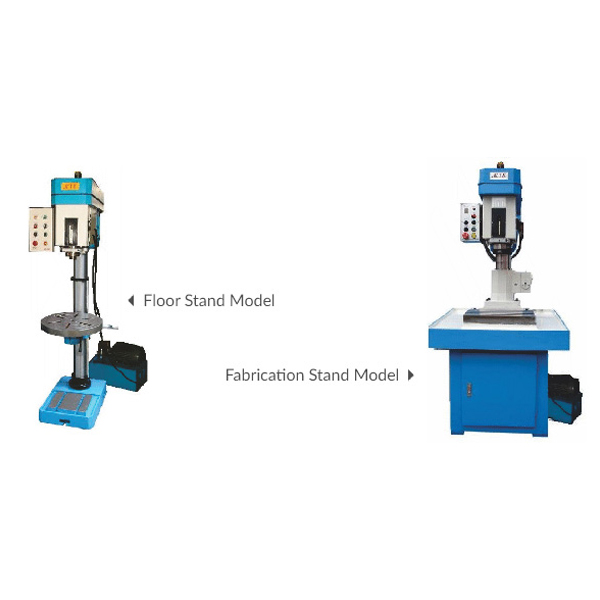

- Machines also available in fabricated stand models.
- Machines can be equiped with multi spindle heads for mass production.
Hydraulic Standard Drilling Machines
|
| Model |
H-2500 |
H-2000 |
| Max. Drilling Capacity |
Ø 25mm |
Ø 19mm |
| Spindle Taper |
MT3 |
MT3 |
| Spindle Travel |
130mm |
100mm |
| Number of Speed |
4 |
3 |
| Spindle Speed (Optional) |
500-1180 rpm
1380-1910 rpm |
500-1180-1900 rpm |
| Column Diameter |
Ø 102mm |
Ø 92mm |
| Table Size |
600*400mm |
500*400mm |
| Max Distance from (spindle to table) |
100-630mm |
100-400mm |
| Max Dist. from (spindle to table) |
930mm |
600mm |
| Motor HP |
2HP |
1.5HP |
| Hydraulic Power |
20 kg/sq.cm |
20 kg/sq.cm |
| Overall Height |
2100mm |
2000mm |
| Weight |
600kg |
450kg |
