UNIVERSAL MULTI SPINDLE HEADS ADJUSTABLE TYPE
Features under this category
The multi spindle heads for drilling and tapping operation are custom build units. Basically the units are manufactured as per specific components OR applications.
Whenever, there is requirement of high production rate of finished components at low cost then, it is recommended to use multi spindle unit. The multi heads with an additional use of indexing tables, linear slides and automatic clamping, facilitate high production of finished component.
- Optimum use of basic mother machine.
- Direct saving in man power and labor cost.
- Direct saving in tooling cost at better process quality.
- Direct saving in cycle time (Loading/Unloading of component)
- Enhanced production rate without compromising the quality.
- Reduced wear and tear of basic machine per drilling or tapping.

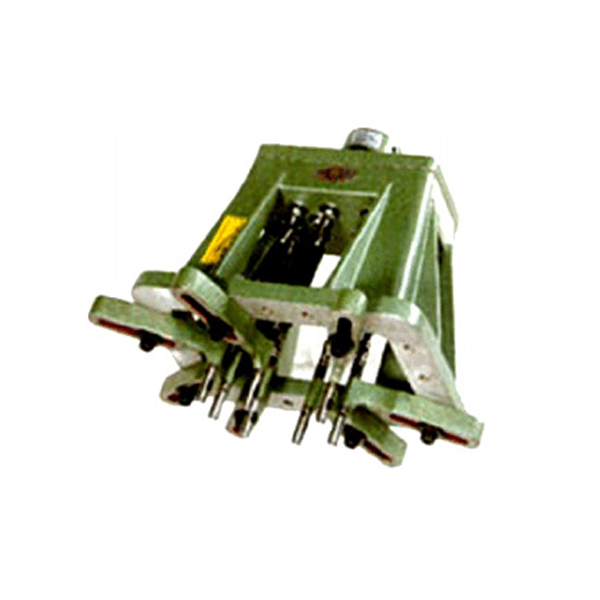

Adjustable Universal Multispindle Head – Suitable for HSS type cutting tools |
||||
Model | Collet | Capacity (S45C) | Spindle adjust range | Spindle No. available |
U-110×165 | C – 5
C – 6 C – 9 |
5mm
6mm 8mm |
13 – 110x165mm
18 – 100x165mm 26 – 100x165mm |
3-8
3-8 3-8 |
U-120×200 | C – 6
C – 9 C – 12 |
6mm
8mm 11mm |
18 – 120x200mm
26 – 120x200mm 28 – 120x200mm |
4-12
4-12 4-12 |
U-120×300 | C – 6
C – 9 C – 12 |
6mm
8mm 11mm |
18 – 200x300mm
26 – 120x200mm 28 – 120x300mm |
4-14
4-14 4-14 |
U-160×450 | C – 6
C – 9 C – 12 |
6mm
8mm 11mm |
18 – 160x450mm
30 – 160x450mm 30 – 160x450mm |
6-14
6-14 6-14 |
U-170×300 | C – 6
C – 9 C – 12 |
6mm
8mm 11mm |
18 – 220x360mm
30 – 220x360mm 30 – 170x300mm |
6-14
6-14 6-14 |
U-220×360 | C – 6
C – 9 C – 12 |
6mm
8mm 11mm |
18 – 220x360mm
30 – 220x360mm 30 – 220x360mm |
6-14
6-14 6-14 |
U-270×300 | C – 6
C – 9 C – 12 |
6mm
8mm 11mm |
18 – 270x300mm
30 – 270x300mm 30 – 270x300mm |
6-14
6-14 6-14 |
U-270×450 | C – 6
C – 9 C – 12 |
6mm
8mm 11mm |
18 – 270x450mm
30 – 270x450mm 30 – 270x450mm |
6-14
6-14 6-14 |
